REF#
|
Make & Model
|
DESCRIPTION
|
|
0838
|
Faber Castell
|
Generic slide rule of all wood
280x33x9 mm (Before 1900)
Front Scales: 25cm // A [ B C ] D || 28cm
Well: 30-55cm
Back Scales: [ S L T ]
|
|
0839
|
Faber Castell (Marked Made in Bavaria)
|
Generic slide rule of wood/plastic
260x33x9 mm (Before 1900)
Front Scales: 10inch // A [ B C ] D || 26cm
Well: 27-51cm
Back Scales: [ S. L. T. ]
|
|
0840
|
Faber Castell
|
Generic slide rule of all wood/plastic laminate
260x33x9.7 mm
Front Scales: 25cm // A [ B C ] D || 26cm
Well: 26-51cm
Back Scales: [ S L T ]
|
|
0841
|
Faber Castell - "ELIN" (Aktiengesellschaft für elektrische Industrie)
|
Generic slide rule of wood/plastic
122x22x8 mm
Front Scales: 10cm // A [ B C ] D || 12cm
Back Scales: [ S L T ]
|
|
5787
|
Faber Castell, Pocket
|
Generic slide rule of wood/plastic
Front Scales: 10cm || A [ B C ] D || 12cm
Back Scales: [ S L T ]
|
|
0854
|
Faber Castell 1/22 Disponent
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // units KZ [ T p%(Val.) T(E) ] Z(V) L || s £ d £
Back Scales: [ LL1 LL2 % C ]
|
|
0865
|
Faber Castell 1/28 Bivius
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K KZ [ T p%(Val.) T(E) ] Z(V) A || s £ d £
Back Scales: [ LL1 LL2 % C ]
|
|
5756
|
Faber Castell 1/38 (Stadia)
|
Generic slide rule of wood/plastic
298x39x11 mm
Front Scales: 27cm // L A [ B CI C ] D P || sin tg
Well: 31-59cm
Back Scales: [ 1-cos2 1) sin.cos cos2 2) ]
|
|
0866
|
Faber Castell 1/38 400g
|
Generic slide rule of wood/plastic
298x39x11 mm
Front Scales: 27cm // L A [ B CI C ] D P ] sin tg
Well: 31-59cm
Back Scales: [ 1-cos2 1) sin.cos cos2 2) ]
|
|
0879
|
Faber Castell 1/54 Darmstadt
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K A [ B CI C ] D P || sin tg
Well: 34-56cm
Back Scales: [ LL1 LL2 LL3 ]
|
|
0884
|
Faber Castell 1/60
|
Generic slide rule of wood/plastic
300x38.5x10 mm
Front Scales: 27cm // A [ B CI C ] D || 1:25
Back Scales: [ S L T ]
|
|
1169
|
Faber Castell 1/60/360
|
Generic slide rule of wood/plastic
300x38.6x11 mm
Front Scales: 10inch // A [ B C ] D || 30cm
Well: 33-60cm
Back Scales: [ sin lg tg ]
|
|

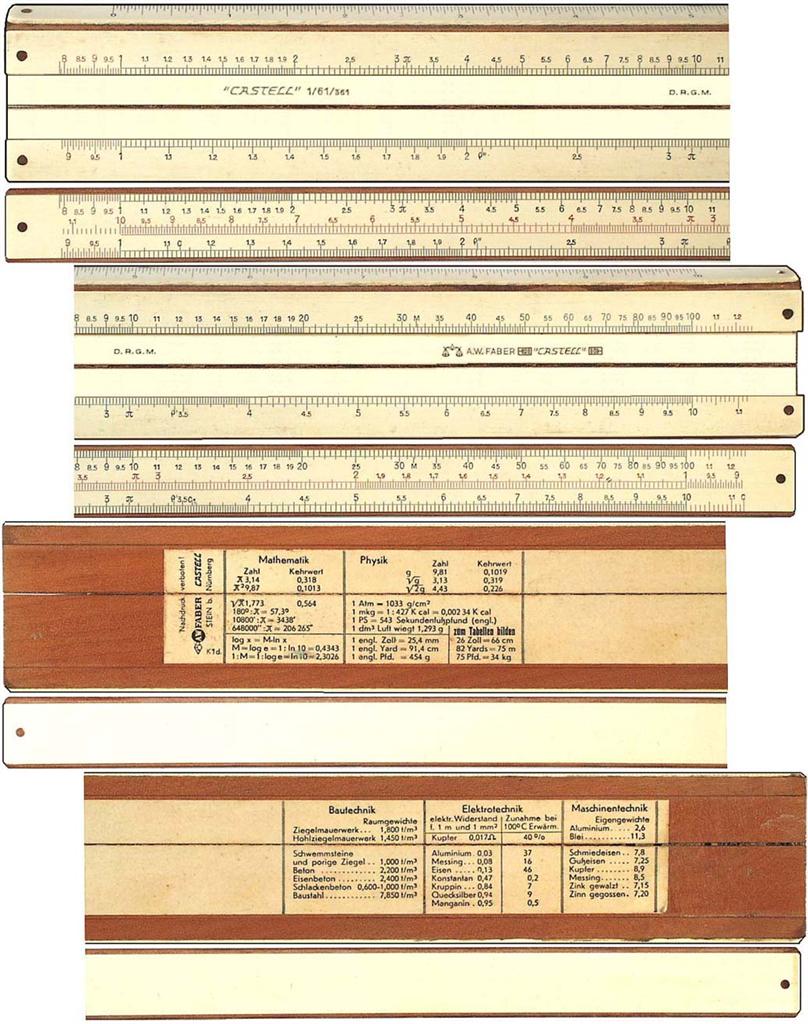

1172
|
Faber Castell 1/61/361
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 10inch // A [ B CI C ] D || 30cm
|
|
1175
|
Faber Castell 1/78/378
|
Electrical slide rule of wood/plastic
300x39x10.9 mm
Front Scales: 27cm // LL2 A [ B C ] D LL3 || 1:25
Well: #Dynamo Motor Volt#
Back Scales: [ sin lg tg ]
|
|
0895
|
Faber Castell 1/87 Rietz
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Back Scales: [ S ST T ]
|
|
1176
|
Faber Castell 1/87/387 Rietz
|
Generic slide rule of wood/plastic
300x39.5x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: #34-60cm#
Back Scales: [ sin sin/tg tg ]
|
|
1689
|
Faber Castell 1/92
|
Generic slide rule of plastic
300x39x10 mm
Front Scales: 10inch // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ sin lg tg ]
|
|
1177
|
Faber Castell 1/92/392
|
Generic slide rule of wood/plastic
299x39x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ S L T ]
|
|
1178
|
Faber Castell 1/94/394
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // K A [ B C ] D L || 1:25
Back Scales: [ sin sin/tg tg ]
|
|
0910
|
Faber Castell 1/98 Elektro
|
Electrical slide rule of wood/plastic
299x39x10.8 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ sin lg tg ]
|
|
1179
|
Faber Castell 1/98/398 Elektro
|
Electrical slide rule of wood/plastic
300x39x10.5 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor Volt#
Back Scales: [ sin lg tg ]
|
|
0913
|
Faber Castell 1/98m Elektro
|
Electrical slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ sin lg tg ]
|
|
0851
|
Faber Castell 10 Klawun
|
Generic slide rule of wood/plastic
300x30x10 mm
Front Scales: K A [ B R C ] D L
Back Scales: [ sin sin/tg tg ]
|
|
3123
|
Faber Castell 11/87
|
Generic slide rule of wood/plastic
300x38x9 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: 33-56cm
Back Scales: [ sin sin/tg tg ]
|
|
1003
|
Faber Castell 11/87 K
|
Generic slide rule of wood/plastic, 300x38.5x9.5 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]
|
|
1128
|
Faber Castell 111/22 Disponent
|
Generic slide rule of plastic
298x49.2x7 mm (1957)
Front Scales: 27cm // units % DF [ CF Val E ] V L sh d £ £
Back Scales: [ LL1 LL2 % C ]
|
|
1131
|
Faber Castell 111/38 Tachymeter 400g
|
Generic slide rule of plastic
300x49x7 mm
Front Scales: 27cm // L A [ B CI C ] D P S T
Back Scales: [ 1-cos2 1) sin-cos cos2 2) ]
|
|
1133
|
Faber Castell 111/48 Machinenzeit (speeds and feeds)
|
Log/tech slide rule of plastic
299x49x7.8 mm
Front Scales: 27cm // PS Std, PS min [ 2) m/min ] D 4) 5)
Back Scales: [ A 6) CI C 7) ]
|
|
1138
|
Faber Castell 111/66 Demegraph (Printer's Slide Rule)
|
Generic slide rule of plastic
299x49x7 mm
Front Scales: 27cm // Ø DF [ CF CI C ] D DIN (paper sizes) 3scales
Back Scales: 0-44 [ LL1 LL2 % C ] O-44
|
|
1143
|
Faber Castell 111/87 A Rietz Addiator
|
Generic rule/addiator of plastic
300x42x8 mm
Front Scales: 10inch // K A [ B CI C ] D L
Back Scales: [ S ST T ]
Back Calculator: Addition and Subtraction (use with stylus)
|
|

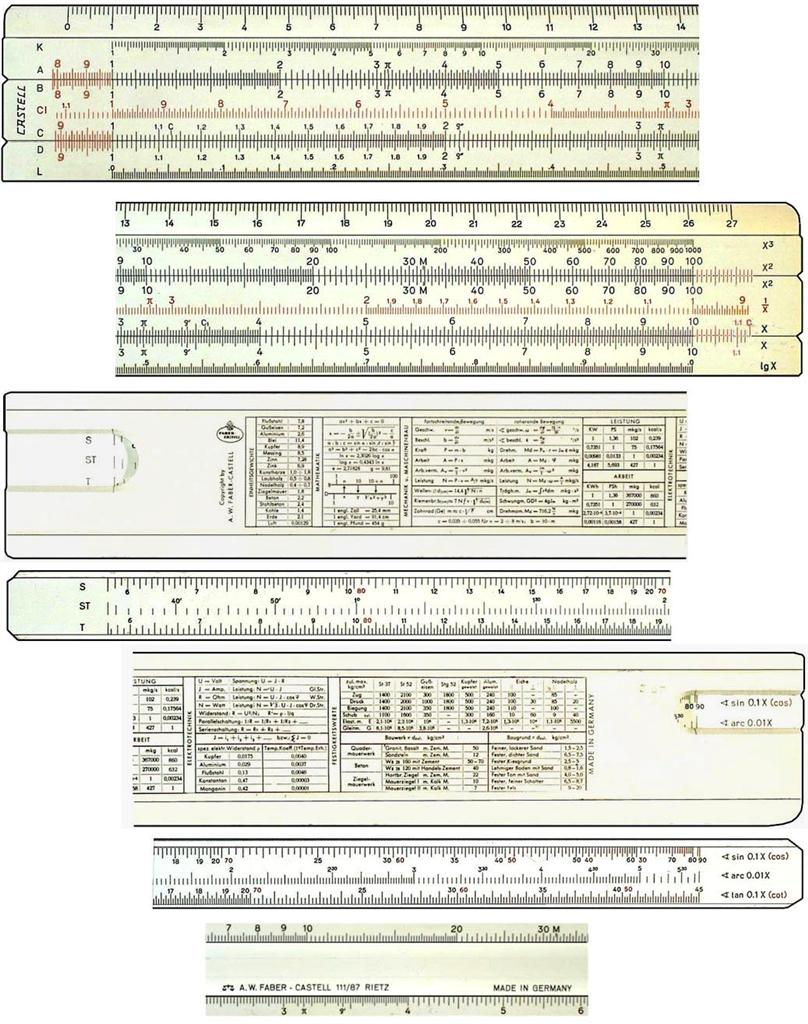

1141
|
Faber Castell 111/87 Rietz
|
Generic slide rule of plastic
299x39x7 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]
|
|
1147
|
Faber Castell 111/98 Elektro
|
Electrical slide rule of plastic
300x49x7 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 Dynamo-Motor h=% Volt || K
Back Scales: [ S L T ]
|
|
1155
|
Faber Castell 157/80 Mentor-Fix
|
Generic slide rule of plastic
299x39.7x5.7 mm
Front Scales: 27cm // A DF [ CF CIF CI C ] D K
|
|
1157
|
Faber Castell 157/87 Rietz
|
Generic slide rule of plastic
299x39.8x5.5 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
1159
|
Faber Castell 157/89 Log Log
|
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2
Back Scales: [ LL2 S' LL3 ]
|
|
1160
|
Faber Castell 163/81 Novo Mentor
|
Generic slide rule of plastic
172x38x3.5 mm
Front Scales: A (K|Z) DF [ (T)CF CIF (P%)CI (T)C ] (Z)D K
Back Scales: L T1 T2 [ S CI C ] D S ST
|
|
1163
|
Faber Castell 167/87 Rietz
|
Generic slide rule of plastic
158x32x4.4 mm
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
1174
|
Faber Castell 176066 Typometer (linotype gauging rule)
|
Other table of plastic, 310x105x1 mm (1984)
non-logarithmic
|
|
0915
|
Faber Castell 2/31 Stahlbeton (Reinforced)
|
Concrete slide rule of plastic
331x48x5 mm
Front Scales: K T1 T2 A [ B BI CI C ] D ST S L
Back Scales: fe [ xfeh x/3 M ] b X
Cursor lens has special nomograph curves
|
|
0917
|
Faber Castell 2/82
|
Generic slide rule of plastic
330x48x5 mm
Front Scales: 25cm T1 T2 A [ B BI CI C ] D P S 10INCH
Back Scales: LL03 LL02 LL01 K [ K' L ST CF ] DF LL1 LL2 LL3
|
|
0923
|

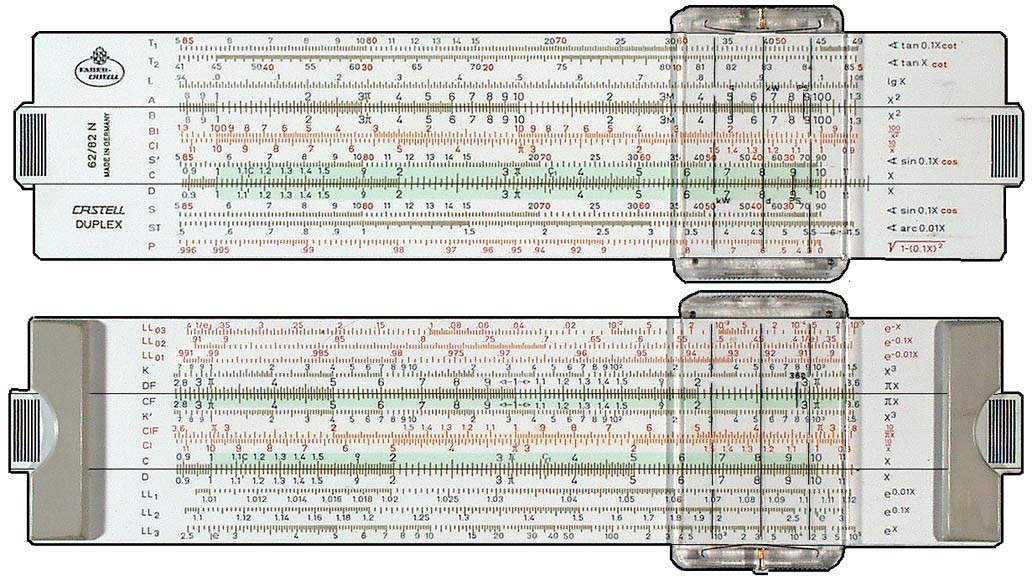

Faber Castell 2/82 N Duplex
|
Generic slide rule of plastic
370x57x5 mm
Front Scales: T1 T2 L A [ B BI CI S' C ] D S ST P
Back Scales: LL03 LL02 LL01 K DF [ CF K' CIF CI C ] D LL1 LL2 LL3
|
|
0929
|
Faber Castell 2/83 N Novo Duplex
|
Generic slide rule of plastic
370x57x5 mm
Front Scales: T1 T2 K A DF [ CF B CIF CI C ] D DI S ST P
Back Scales: LL03 LL02 LL01 LL00 W2 [ W2' CI L C W1' ] W1 D LL0 LL1 LL2 LL3
|
|
0925
|
Faber Castell 2/83 Novo Duplex
|
Generic slide rule of plastic
332x47.4x5 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D S ST P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3
|
|
1006
|
Faber Castell 20/68 Parifix (Conversion Chart - non-logarithmic)
|
Technical rule of plastic
251x69 mm
Front Scales: cm ft m yd km miles °F °C °R Inch
Back Scales: £cbm sh/d cbft kg lbs Imp.gal USgal Ltr
|
|
0933
|
Faber Castell 3/11 Statics
|
Generic slide rule of wood/plastic
385x40.5x11 mm
Front Scales: 30cm // A [ B CI 1)2) 3)4) C [ D ] K
Back Scales: [ sin lg sin/tg tg [
|
|
3884
|
Faber Castell 3/11 Statics
|
Technical slide rule of wood/plastic
384x42x12 mm
Front Scales: 14inch // M [ b CI 1) 2) At C ] D ] K L
Back Scales: [ sin sin/tg tg ]
|
|
0936
|
Faber Castell 3/31 Statik
|
Log/tech slide rule of wood/plastic
385x42x12 mm
Front Scales: 30cm // M A [ B sb CI 1) 2) fe C ] D h(fe) || K L
Well: 2 3 4 8
Back Scales: [ S 4) 5) ST T ]
|
|
0932
|
Faber Castell 307 Columbus (System Rohrberg)
|
Generic slide rule of wood/plastic
310x28x65 mm
Front Scales: C [ D M ]
|
|
2902
|
Faber Castell 308
|
Generic slide rule of wood/celluloid
152x23x7.4 mm
Front Scales: A [ B C ] D
Back Scales: [ S L T ]
|
|
1164
|
Faber Castell 310/52 Projektionsrechenstab
|
Generic projection of plastic
380x200x12 mm
Front Scales: L K A [ B BI CI C ] D LL1 LL2 LL3
Back Scales: T1 T2 DF [ CF CIF S' C ] D S ST P
|
|
3882
|
Faber Castell 310/87
Projection of 111/87
|
Generic slide rule of perspex
368x200x15 mm
Front Scales: K A [ B CI C ] D L
Back Scales: K A [ S ST T ] D L
|
|
0935
|
Faber Castell 314
|
Generic slide rule of wood/celluloid
122x18.2x4.3 mm
Front Scales: A [ B C ] D
Back Scales: 11cm 4inch
|
|
0937
|
Faber Castell 332
|
Generic slide rule of wood/plastic
152.5x23.5x6.5 mm
Front Scales: A [ B C ] D
|
|
2686
|
Faber Castell 339 Schulrechenstab
|
Generic slide rule of wood/plastic, 280x27,5x7,5 mm
Front Scales: A [ B C ] D
Back Scales: 28cm 11inch
|
|
0941
|

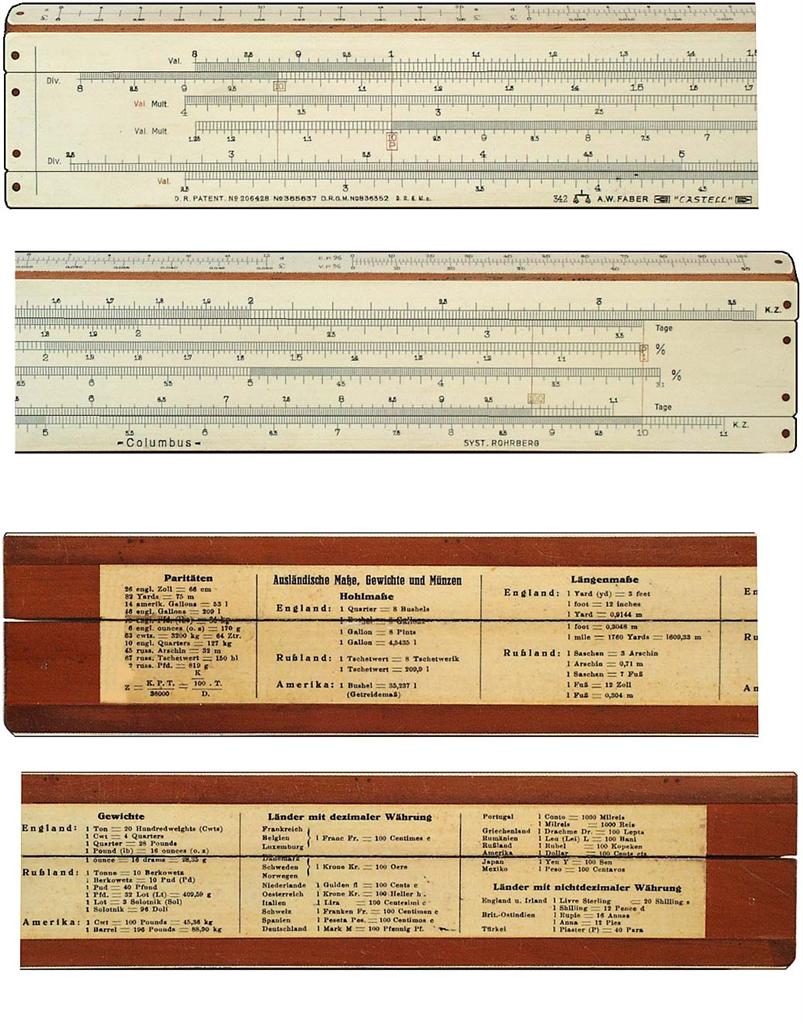

Faber Castell 342 Columbus (System Rohrberg)
|
Generic slide rule of wood/plastic
385x50x12.8 mm
Front Scales: s £ d £ E.P% V.P.% // Val [ Div. Val.Mult Val.Mult Div. ] Val. || 38cm
|
|
0942
|
Faber Castell 345
|
Generic slide rule of wood/plastic
280x33x11 mm
Front Scales: 10inch // A [ B C ] D | 27cm
Well: 30-55cm
Back Scales: [ S L T ]
|
|
0944
|
Faber Castell 357
|
Generic slide rule of all wood
280x33x10 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Well: 30-55cm
Back Scales: [ S. L. T. ]
|
|
3457
|
Faber Castell 360
|
Generic slide rule of wood/plastic
280x33.5x10.7 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Back Scales: [ S L T ]
|
|
0953
|
Faber Castell 363
|
Generic slide rule of wood/plastic
280x32.5x9 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Well: #30-55cm#
Back Scales: [ S L T ]
|
|
0956
|
Faber Castell 368 (electro)
|
Electrical slide rule of wood/plastic
285x36x9 mm
Front Scales: LL3 LL2 // A [ B C ] D \\ 27cm
Well: #Dynamo-Motor n% Volt#
Back Scales: [ S L T ]
|
|
3454
|
Faber Castell 368 (electro)
|
Electrical slide rule of wood/plastic
285x36x9 mm
Front Scales: 27cm // A [ B C ] D \\ LL3 LL2
Well: #Dynamo-Motor n% Volt#
Back Scales: [ S L T ]
|
|
0957
|
Faber Castell 369
|
Generic slide rule of wood/celluloid
149x28.6x10 mm
Front Scales: 14cm // A [ B C ] D || 15cm
Back Scales: [ S L T ]
|
|

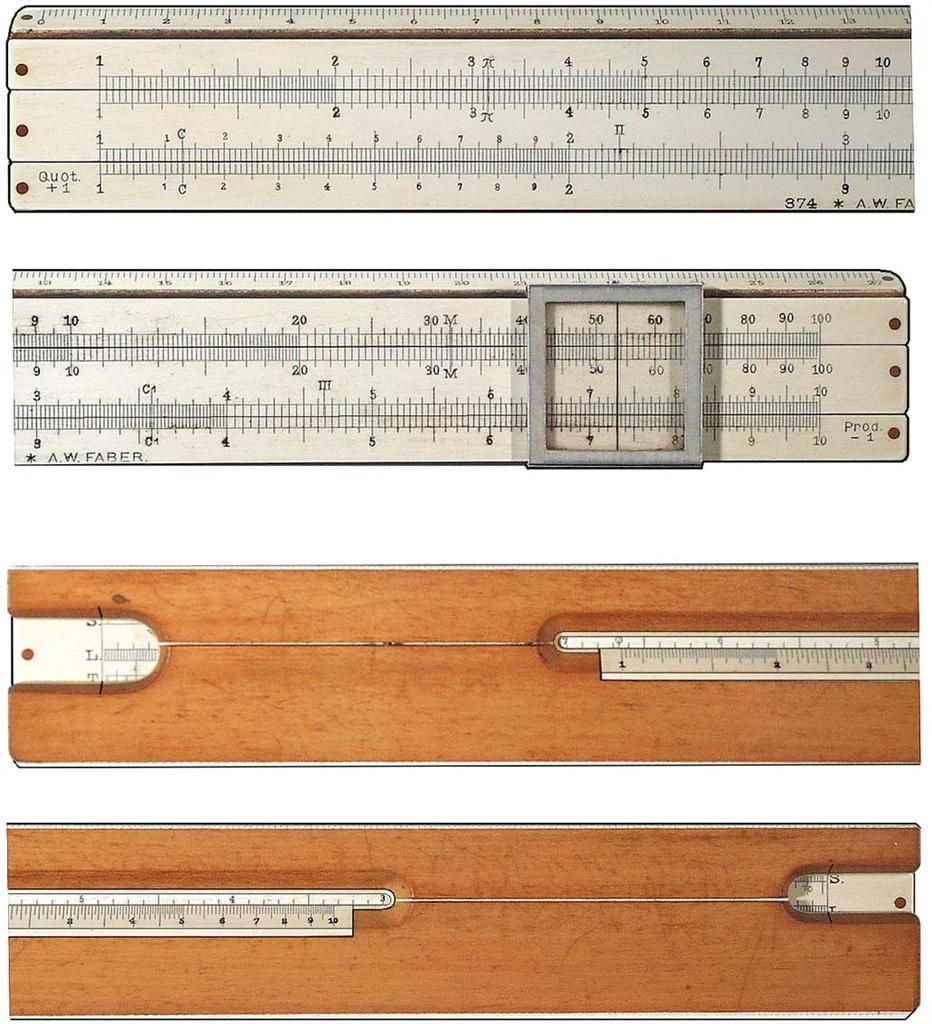

2894
|
Faber Castell 374 System Pickworth
|
Generic slide rule of wood/celluloid
280x32x9.5 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Back Scales: [ S L T ] K
|
|
0962
|
Faber Castell 375 Rietz
|
Generic slide rule of wood/plastic
279x37.6x10 mm
Front Scales: 27cm // K A [ B C ] D L || 28cm
Back Scales: [ S L T ]
|
|
0971
|
Faber Castell 378
|
Electrical slide rule of wood/plastic
295x38x10 mm
Front Scales: 27cm // LL2 A [ B C ] D LL3 || 10inch #Dynamo-Motor n=% Volt#
Back Scales: [ S L T ]
|
|
0983
|
Faber Castell 387
|
Generic slide rule of wood/plastic
305x41.5x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: #33-60cm#
Back Scales: [ S S&T T ]
|
|
0986
|
Faber Castell 392
|
Generic slide rule of wood/plastic
300x41x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ S L T ]
|
|
0987
|
Faber Castell 398
|
Electrical slide rule of wood/plastic
300x41.2x11 mm
Front Scales: 10inch // LL2 A [ B 1) CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ S L T ]
|
|
0991
|
Faber Castell 4/22 Disponent
|
Generic slide rule of wood/plastic
574x42.5x13.8 mm
Front Scales: 50cm // units DF [ CF CI C ] D L || sh/d £
Back Scales: [ LL1 LL2 % C ]
|
|
0993
|

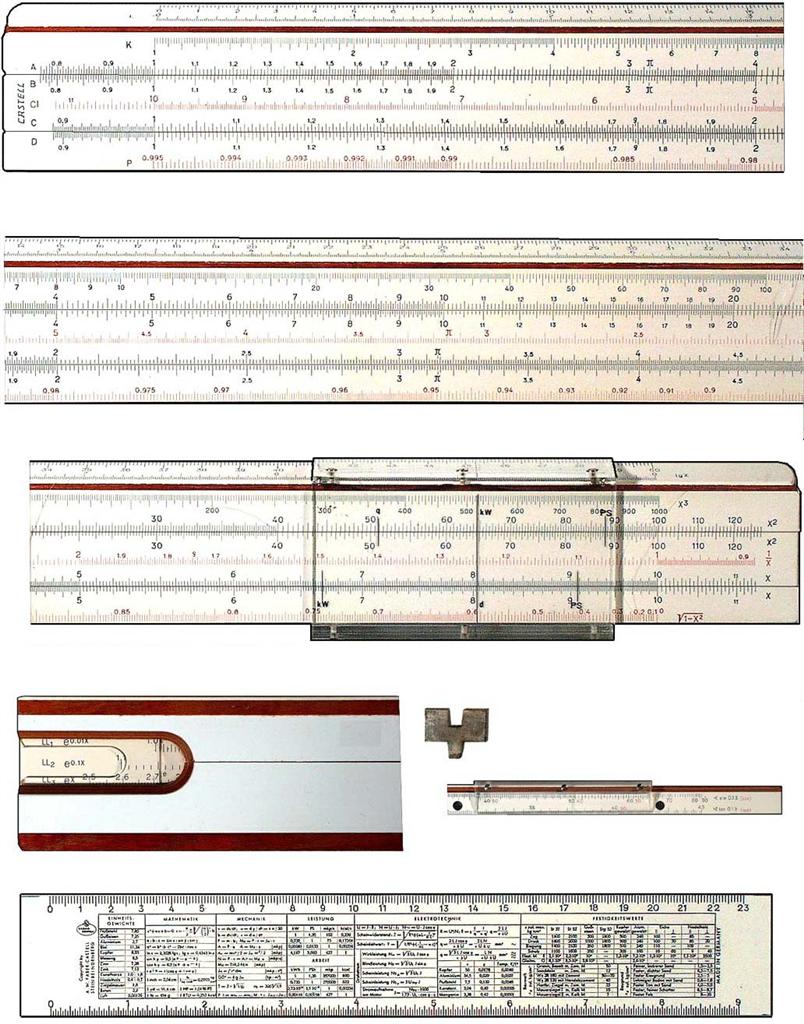

Faber Castell 4/54 Darmstadt
|
Generic slide rule of wood/plastic
574x42x13 mm
Front Scales: 50cm L // K A [ B CI C ] D P || S T
Back Scales: [ LL1 LL2 LL3 ]
|
|
1000
|
Faber Castell 4/98 Elektro
|
Electrical slide rule of wood/plastic
577x43x14 mm
Front Scales: 50cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo/Motor Volt#
Back Scales: [ S L T ]
|
|
1007
|
Faber Castell 4477 Wichmann
|
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K A [ B CI C ] D P || sin tg
Well: #34-58cm#
Back Scales: [ LL1 LL2 LL3 ]
|
|
1009
|
Faber Castell 51/22
|
Generic slide rule of wood/plastic
300x30x9 mm
Front Scales: units KZ [ T Val. E ] V L
Back Scales: [ LL1 LL2 % C ]
|
|
1010
|
Faber Castell 51/39
|
Generic slide rule of wood/plastic
301x30x9.5 mm
Front Scales: A [ B C ] D
Back Scales: 30cm [ ] 11.7inch
|
|
1182
|
Faber Castell 51/39/339 School Rekenlineaal
|
Generic slide rule of wood/plastic
300x30x9.4 mm
Front Scales: A [ B C ] D
Back Scales: 30cm 11.7inch
|
|
1012
|
Faber Castell 51/91
|
Generic slide rule of wood/plastic
300x30x10 mm
Front Scales: A [ B C ] D
Back Scales: [ sin lg tg ]
|
|
5754
|
Faber Castell 51/94 System Rietz
|
Generic slide rule of wood/celluloid
300x30x9 mm
Front Scales: K A [ B C ] D L
Back Scales: [ sin sin/tg tg ]
|
|
1184
|
Faber Castell 51/94/317 Schul Rechenstab
|
Generic slide rule of wood/plastic
300x30x9 mm
Front Scales: K A [ B C ] D L
Back Scales: 30cm [ sin sin/tg tg ] 11inch
|
|
2868
|
Faber Castell 52/22 Schul Disponent
|
Generic slide rule of all wood
300x30x10 mm
Front Scales: units KZ [ T val E ] V L
Back Scales: [ LL1 LL2 % C ]
|
|
1186
|
Faber Castell 52/39/355
|
Generic slide rule of all wood
300x30x9 mm
Front Scales: A [ B C ] D
|
|
1015
|
Faber Castell 52/80 Mentor
|
Generic slide rule of plastic
324x41.5x4 mm
Front Scales: A % DF [ CF CIF CI C ] D K
Back Scales: 25cm [ ] 10inch
|
|
1018
|
Faber Castell 52/81 Novo Mentor
|
Generic slide rule of plastic
325x41.84 mm
Front Scales: A DF [ CF CIF CI C ] D K
Back Scales: T1 T2 [ S' CI C ] D S ST
|
|
1019
|

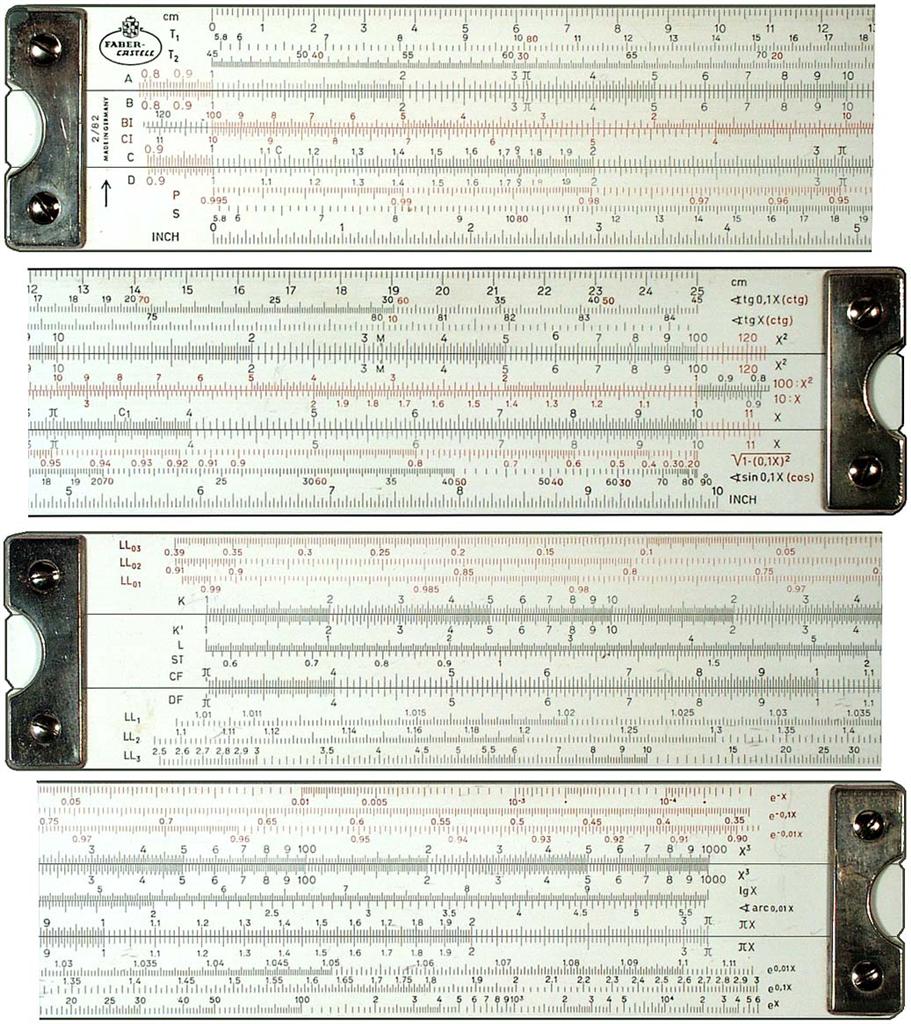

Faber Castell 52/82 D-stab
|
Generic slide rule of plastic
325x42x4 mm (1971)
Front Scales: L K A [ B BI CI C ] D LL1 LL2 LL3
Back Scales: T1 T2 DF [ CF CIF S' C ] D S ST P
|
|
3451
|
Faber Castell 55/91
|
Generic slide rule of all wood
300x30x9 mm
Front Scales: A [ B C ] D
Back Scales: [ sin lg tg ]
|
|
1030
|

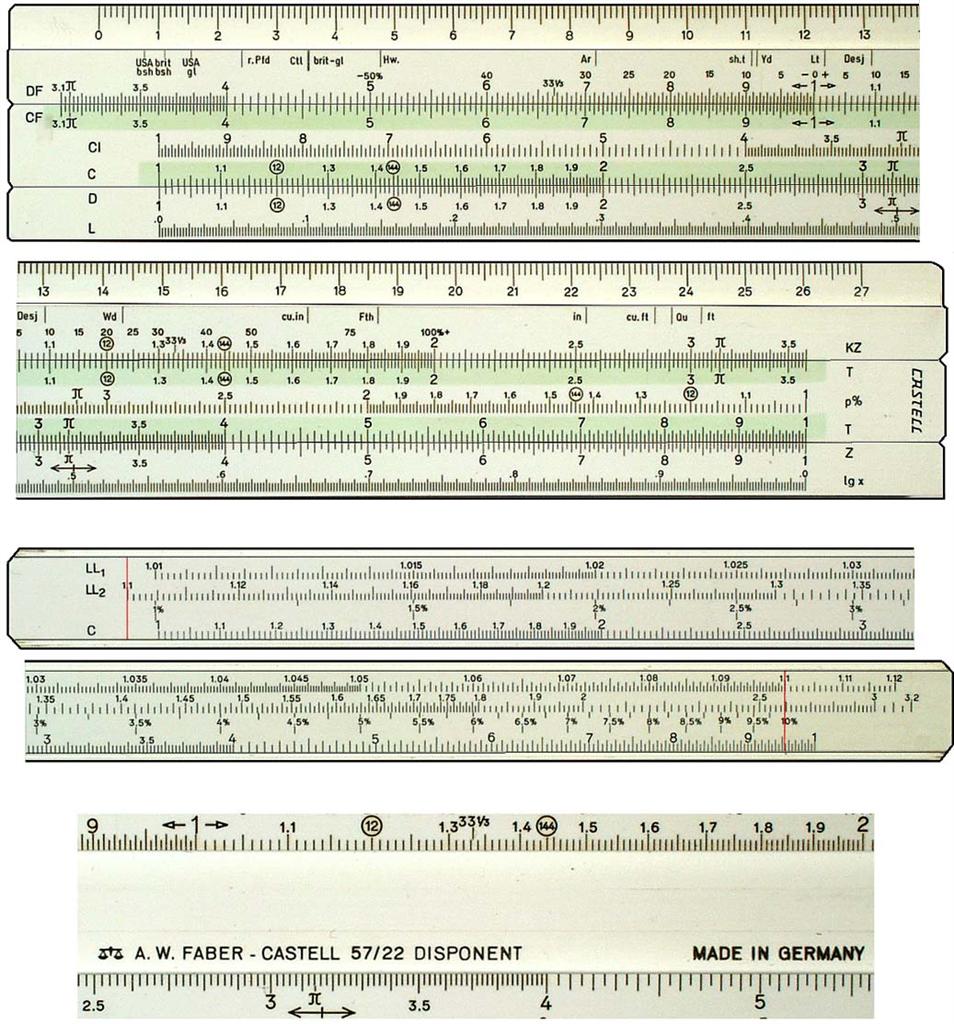

Faber Castell 57/22 Disponent
|
Generic slide rule of plastic
298x40x5.2 mm
Front Scales: 27cm // conversionfactors % DF [ CF CI C ] D L
Back Scales: [ LL1 LL2 % C ]
|
|
3895
|
Faber Castell 57/22 W Tuberios de Fibrocemento
|
Concrete slide rule of plastic
|
|
1038
|
Faber Castell 57/69
|
Technical slide rule of plastic
298x40x5.5 mm
Front Scales: 27cm // AG [ I oam2 II oam2 ] OS
|
|
1043
|
Faber Castell 57/86 Columbus
|
Generic slide rule of plastic
288x32x4,5 mm (1962)
Front Scales: 27cm // A [ B C ] D
|
|
1048
|
Faber Castell 57/87 Schul Rietz
|
Generic slide rule of plastic
300x396x5.5 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
1065
|
Faber Castell 57/88 Rietz-N
|
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2
|
|
1070
|

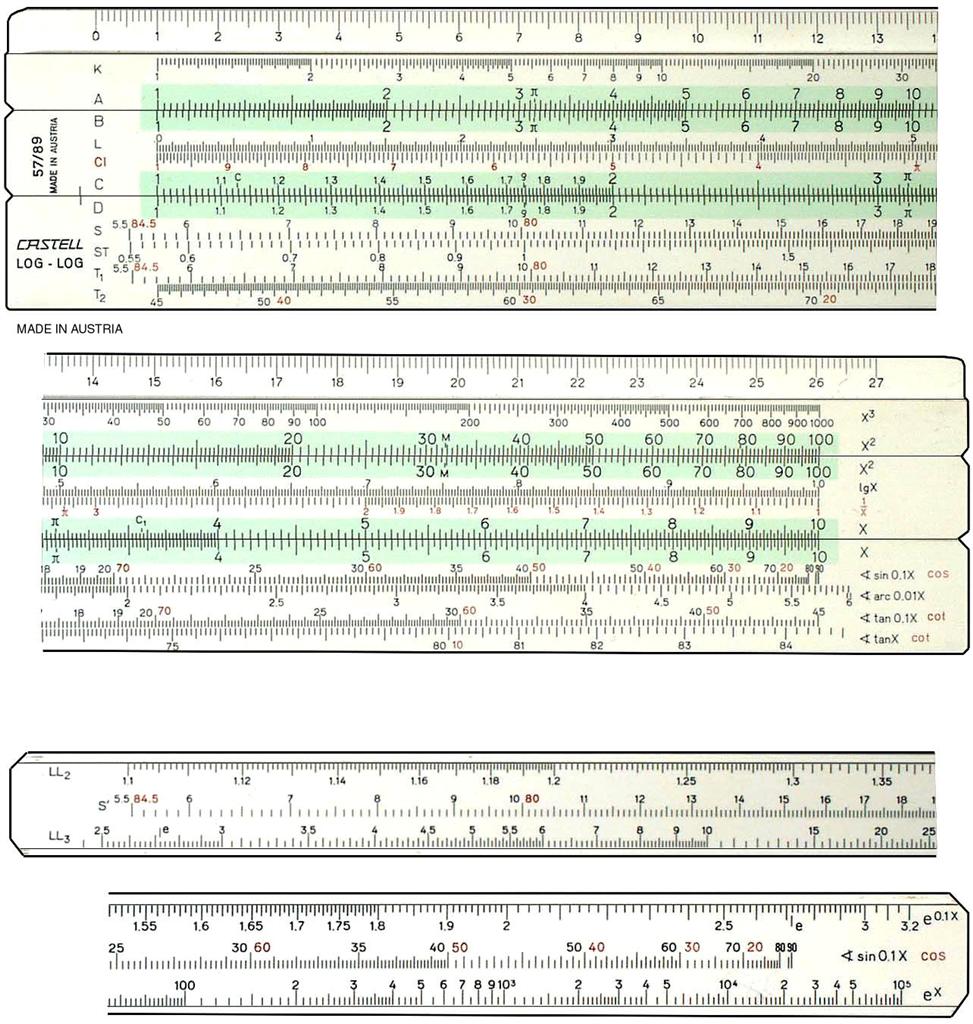

Faber Castell 57/89 Log Log
|
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2
Back Scales: [ LL2 S' LL3 ]
|
|
1076
|

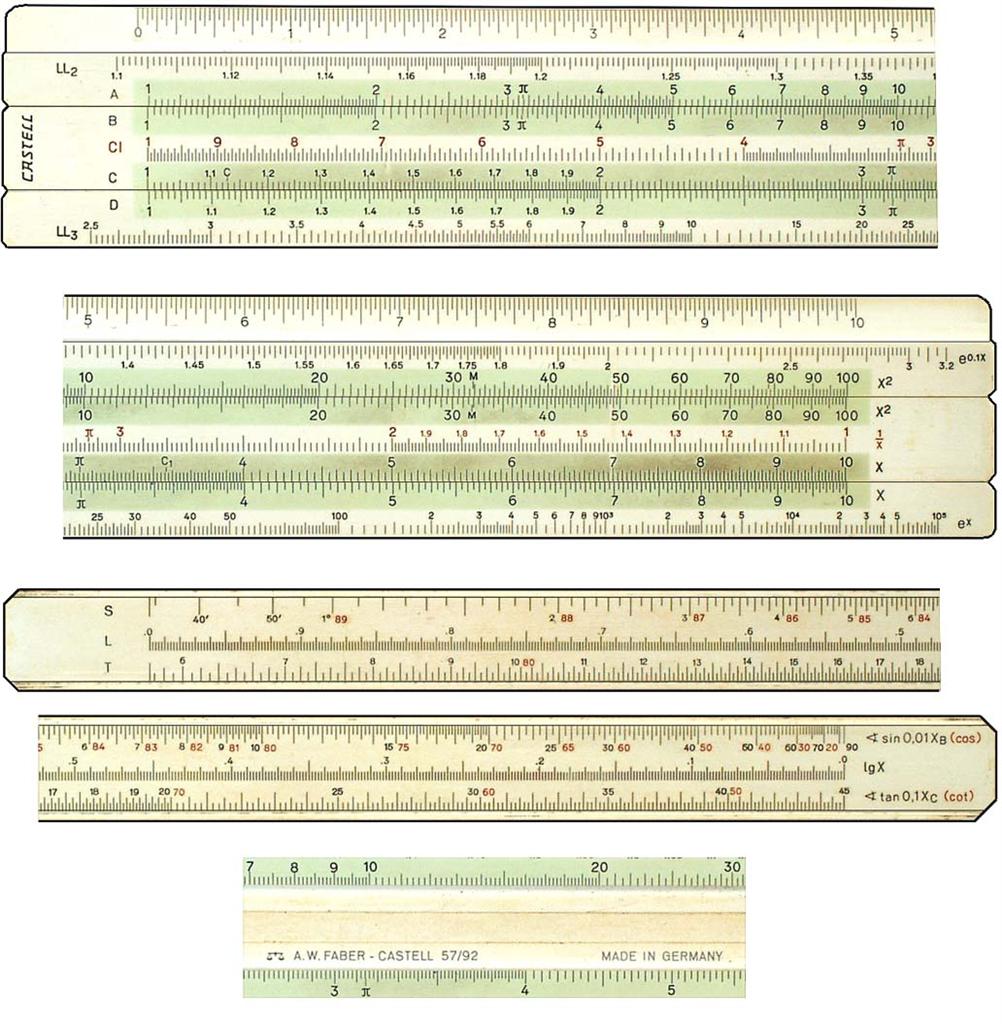

Faber Castell 57/92
|
Generic slide rule of plastic
298x39.8x5.5 mm
Front Scales: 10inch // LL2 A [ B CI C ] D LL3
Back Scales: [ S L T ]
|
|
1187
|
Faber Castell 61/60/369
|
Generic slide rule of wood/plastic
156x31.5x9.5 mm
Front Scales: 14cm // A [ B C ] D || 1:25
Back Scales: [ S L T ]
|
|
1188
|
Faber Castell 61/87/397 Rietz
|
Generic slide rule of wood/plastic
155x31x9 mm
Front Scales: 14cm // K A [ B CI C ] D L || 1:25
Back Scales: [ sin sin/tg tg ]
|
|
1080
|
Faber Castell 62/82 N Duplex
|
Generic slide rule of plastic
200x47x3.5 mm
Front Scales: T1 T2 L A [ B BI CI S' C ] D S ST P
Back Scales: LL03 LLO2 LL01 K DF [ CF K' CIF CI C ] D LL1 LL2 LL3
|
|
3439
|
Faber Castell 62/83
|
Generic slide rule of plastic
186x42x4 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D ST S P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3
|
|
1082
|
Faber Castell 62/83 N Novo-Duplex
|
Generic slide rule of plastic
200x46.4x3.4 mm
Front Scales: T1 T2 K A DF [ CF B CIF CI C ] D DI S ST P
Back Scales: LL03 LL02 LL01 LL00 W2 [ W2' CI L C W1' ] W1 D LL0 LL1 LL2 LL3
|
|
1084
|
Faber Castell 63/22
|
Generic slide rule of wood/plastic
155x30x4.5 mm
Front Scales: 14cm // KZ [ T Val E ] V
|
|
1085
|
Faber Castell 63/22 R Kleindisponent Addiator
|
Generic rule/addiator of wood/plastic
155x37x8 mm
Front Scales: 14cm // KZ [ T Val E ] V \\ s/£ d/£
Back: Addiator +/-
|
|
1086
|
Faber Castell 63/39
|
Generic slide rule of wood/plastic
155x31.4x4.8 mm
Front Scales: 14cm // A [ B C ] D
|
|
1087
|
Faber Castell 63/83
|
Generic slide rule of plastic
172x38x3.5 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D S ST P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3
|
|
3255
|
Faber Castell 63/87 (Phillip Holzmann AG)
|
Generic slide rule of plastic
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]
|
|
1089
|
Faber Castell 63/91 (Maatschappij Wegenbouw N.V. Bitumenweg N.V, Utrecht)
|
Generic slide rule of plastic
150x30.5x4.5 mm
Front Scales: 14cm // A [ B C ] D
|
|
1520
|
Faber Castell 64/22 (Made in Bavaria)
|
Generic slide rule of wood/celluloid
154x31x6 mm
Front Scales: 5inch // DF [ CF CI C ] D
|
|
3449
|
Faber Castell 64/91
|
Generic slide rule of wood/celluloid
155x32x6.5 mm
Front Scales: 14cm // A [ B C ] D
Back Scales: [ sin lg tg ]
|
|
1094
|
Faber Castell 67/22 Kleindisponent
|
Generic slide rule of plastic
157x33x4.5 mm
Front Scales: 14cm // % DF [ CF CI C ] D
Back Scales: [ sh/d £ ]
|
|
1097
|
Faber Castell 67/22 Rb Disponent Addiator
|
Generic rule/addiator of plastic
158x42x7 mm
Front Scales: 14cm // % DF [ CF CI C ] D sh/d £
Back: Addiator +/-
|
|
3893
|
Faber Castell 67/34 Medizinischer Rechenstab Hemaglobin
|
Medical slide rule of plastic
|
|
1098
|
Faber Castell 67/39
|
Generic slide rule of plastic
157x32.8x4.4 mm
Front Scales: 14cm // A [ B C ] D
|
|
1100
|
Faber Castell 67/54 b Darmstadt
|
Generic slide rule of plastic
158x42x4.5 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ LL1 LL2 LL3 ]
|
|
3903
|
Faber Castell 67/54 b SZ
|
Generic slide rule of plastic
158x42x4 mm
Front Scales: 14cm // j cosj A [ B CI C ] D sinj tgj L
|
|
1099
|
Faber Castell 67/54 Darmstadt
|
Generic slide rule of plastic
153x40x4 mm
Front Scales: 14cm lg // K A [ B CI C ] D P \\ sin tg
Back Scales: [ LL1 LL2 LL3 ]
|
|
1105
|
Faber Castell 67/54 R Darmstadt
|
Generic slide rule of plastic
153x40x9 mm
Front Scales: 14cm L // K A [ B CI C ] D P \\ S T
Back Scales: [ LL1 LL2 LL3 ]
|
|
2817
|

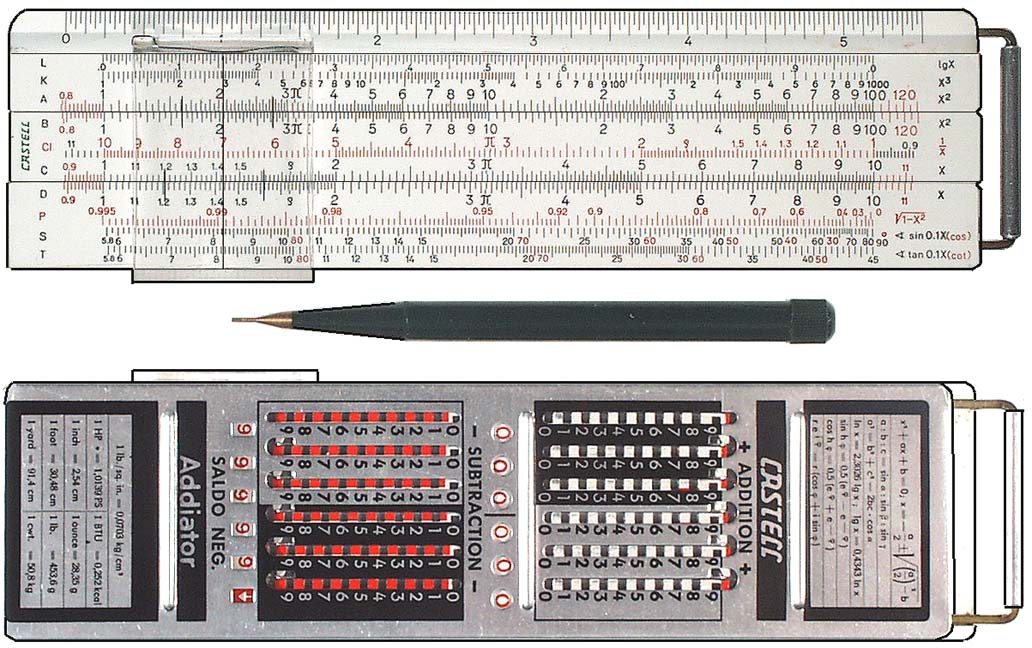

Faber Castell 67/54 Rb Darmstadt Addiator
|
Generic rule/addiator of plastic/metal
158x41x7 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ LL1 LL2 LL3 ]
|
|
3131
|
Faber Castell 67/54 Rb Darmstadt Addiator
|
Generic rule/addiator of plastic/metal
157x42x7 mm
Front Scales: 5inch // L K A [ B CI C ] D P S T
Back Slide: [ LL1 LL2 LL3 ]
Back: Addiator +/-
|
|
2793
|
Faber Castell 67/56 b Schweisstechnik
|
Log/tech slide rule of plastic
157x42x4.2 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ H CI C ]
|
|
1106
|
Faber Castell 67/87 Rb Rietz Addiator
|
Generic rule/addiator of plastic
158x43x8 mm
Front Scales: 14cm // L K A [ B CI C ] D S ST T
|
|
1108
|
Faber Castell 67/87 Rietz
|
Generic slide rule of plastic
157x32.8x4.5 mm
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
1117
|
Faber Castell 67/91
|
Generic slide rule of plastic
157x33x4.5 mm
Front Scales: 14cm // A [ B C ] D
Back Scales: [ S L T ]
|
|
1120
|
Faber Castell 67/98 b Elektro
|
Electrical slide rule of plastic
158x42x4.6 mm
Front Scales: 14cm // LL2 A [ B CI C ] D LL3
Well: Dynamo-Motor h=% Volt
Back Scales: [ S L T ]
|
|
1001
|
Faber Castell 8/10
|
Generic disc of plastic
125x7 mm
Front Scales: K A L D ( C CI B T1 T2 S ST )
|
|
3565
|
Faber Castell 8/30
|
Financial disc of plastic
95x1.5 mm
Front Scales: RABATT% AUFSCHLAG% D ( C CI )
|
|
3458
|
Faber Castell 9205
|
Generic slide rule of wood/celluloid
279x37x11 mm
Front Scales: 26cm // K A [ B C ] D L || 10inch
Back Scales: [ S ST T ]
|
|
5741
|
Faber Castell Calculating Rule
|
Generic slide rule of all wood
Front Scales: 10 inch // A [ B C ] D L || 27 cm
Well: 51cm
Back Scales: [ S L T ]
|
|
5040
|
Faber Castell ( Kodak )
|
Photography slide rule of plastic
Front Scales: a(m) [ xa/f(mm) x(mm) ] f(mm) f/r k
Back: Translation of terms
|
|
0844
|
Faber Castell (Nijgh & Van Ditmar)
|
Generic slide rule of plastic
297x39.8x5.4 mm
Front Scales: 27cm // A DF [ CF L CI C ] D K
Back Scales: [ S ST T ]
|
|
0849
|
Faber Castell TR 2 with pocket calculator
|
Log/comp slide rule of plastic
171x58x18 mm (1978)
Front Scales: LL03 LL02 LL01 K A [ B BI CI C ] D L LL1 LL2 LL3
Back Scales: [ T1 ST S P C ]
Calculatore: LED display - basic math
|
|
2874
|
Faber cme world war II military rule
|
Military slide rule of wood/plastic
249x59x15 mm
Front Scales: 1) 2) / 3) [ 4) 5) ] 6) 7) || 24cm
Back Scales: [ 8) 9) ]
|
|
2809
|
Faber Made in Bavaria (no scale labels)
|
Generic slide rule of wood/celluloid
280x34x9 mm
Front Scales: / A [ B C ] D \
|
|
2810
|
Faber Made in Bavaria
|
Generic slide rule of wood/celluloid, 260x33x9 mm
Front Scales: 10inch // A [ B C ] D ] 26cm
Well: #27-51cm#
Back Scales: 10 INCHES [ S. L. T. ] 25 METER
|
|
3587
|
Faber Verlag Chemie
|
Chemistry slide rule of plastic
187x41x3.3 mm
Front Scales: K T1 T2 DF [ CF L Ci C ] D LL3 LL03 LL02
Back Scales: C N F H [ B 1) CI C ] D B P Cl
|
|
1189
|
FAé-LuM-HSB 300 Hono-Rietz
|
Generic slide rule of plastic
291x48.7x4.3 mm
Front Scales: L K A [ B CI C ] D S ST T
|
|
2690
|
Farmar Entire Wine & Spirit
|
Alcohol slide rule of wood/plastic
531x67x7 mm
Front Scales: AA A [ B C ] D E F
Back Scales: 1) 2) G [ H I ] J K KK
|
|
1191
|
Farrow & Jackson gauging
|
Generic slide rule of all wood
318x55x6.5 mm (After 1824)
Front Scales: 12inch 1) 2) || A [ B C ] D SS [ E ] SL
Back Scales: A [ A ] A C [ OP C ] 1/ss
|
|
1192
|
Fearns Shaft Size and Horsepower Calculator
|
Technical disc of plastic
104x4.2 mm
Front Scales: 1 ( 2 3 ) 4 5
|
|
1197
|
Felsenthal Computer Altitude Correction AN 5837 - 1
|
Aviation disc of plastic
203x3 mm (1948)
Front Scales: 1 2 ( 3 4)
|
|
1194
|
Felsenthal Mark 8 Aircraft Navigational Computer
|
Aviation disc of plastic
108x1.5 mm
Front Scales: 1 ( 2 3 4 5 6 )
|
|
5439
|
Felsenthal ML 420 A / AMT 4
|
Meteorology disc of plastic
2834 mm
|
|
1198
|
Felsenthal Part no. FAA 12
|
Aviation table of plastic
275x97x1 mm
|
|
1211
|
Felsenthal Part no. FAA 123
|
Aviation disc of plastic
204x5 mm
(1961, 1963)
|
|
1199
|
Felsenthal Part no. FAA 14
|
Aviation disc of plastic
204x3 mm
Front Scales: 1 2 3 ( 4 5 ) 6 7
|
|
1212
|
Felsenthal Part no. FAA 156
|
Aviation disc of plastic
156 mm (1964)
|
|
1214
|
Felsenthal Part no. FAA 212 PT Pilot's Computer
|
Aviation disc of plastic
99x3 mm (1970-1974)
Front Scales: Many scales
Back Scales: Many scales
|
|
1201
|
Felsenthal Part no. FAA 35 Course & Distance Computer A-5
|
Aviation disc of plastic
228x3 mm
Front Scales: 1 ( 2 3 4 )
Back Scales: 5 6 ( 7)
|
|
1202
|
Felsenthal Part no. FAA 37
|
Aviation disc of plastic
110x3 mm
Front Scales: 1 ( 2 3 ) + window
Back Scales: 4 ( 5 ) + window
|
|
1204
|
Felsenthal Part no. FAA 46C Type MB 4
|
Aviation disc of metal
283x123x10 mm
|
|
1205
|
Felsenthal Part no. FAA 58 Plotter Scale Type B 2 (non-logarithmic)
|
Aviation slide rule of plastic
371x103x4 mm (1980)
Front Scales: 1 2 3 4 5 6
|
|
1206
|
Felsenthal Part no. FAA 78A - 1
|
Aviation disc of metal
127x25 mm (1957)
Front Scales: 1 2 ( 3 ) 4 ( 5)
Back Scales: 6 7 8 9 10 ( 11 ) 12
|
|
1196
|
Felsenthal Part no. FAA 8
|
Aviation disc of plastic
124x239x12 mm
Front Scales: 1 ( 2 3 ) + 2 windows
Back Scales: 4 ( 5)
|
|
1207
|
Felsenthal Part no. FAA 84
|
Aviation disc of plastic
110x35 mm
Front Scales: 1 ( 2 ) 3 ( 4 5 6 ) + 3 windows
Back Scales: 7 ( 8 ) + 3 windows
|
|
1208
|
Felsenthal Part no. FAA 93A
|
Aviation disc of metal
190x80x9 mm
|
|
1203
|
Felsenthal Part no. FDF-39 Radio Navigation Plotter (non-logarithmic)
|
Aviation slide rule of plastic
191x77x1 mm (1969)
Front Scales: 1 2 3 4
Back Scales: 5 6 7 8 9
|
|
1195
|
Felsenthal Part no. FDI 8 Mach Computer
|
Aviation disc of plastic
152x2 mm
Front Scales: 1 ( 2 ) + window
|
|
1200
|
Felsenthal Part no. FDW 31 Mark VIII-Computer
|
Aviation disc of plastic
102x1.2 mm (1968)
|
|
5431
|
Fescol Hardness
|
Technical disc of cardboard
97x2 mm
Front Scales: Diamond Pyramid Brinell Firth Rockwell Scleroscope Tensile Strength
|
|
1216
|
Festus (Festus Mfg, Festus, MO prior to beoming Acu-Rule)
|
Generic slide rule of wood/paint
267x31x9 mm
Front Scales: A [ B CI C ] D K
|
|
2052
|
Feuerleitgerät FLG - 9
|
Military instrument of metal
580x350x80 mm
|
|
5042
|
Filotecnica No. 05 R
|
Generic slide rule of wood/plastic
Front Scales: 55cm // K A [ B CI C ] D L
Well: 58 - ?? cm
Back Scales: [ S S&T T ]
|
|
5323
|
Filtra Filtergewebe
|
Technical slide chart of cardboard
210x208x0.8 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
1219
|
Flying Fish 1200
|
Generic slide rule of plastic
200x45x4 mm
Front Scales: sh0 sh1 K A [ B srt-1 tg0 tg1 tg2 C ] D lg-1 th0 ch1
Back Scales: lni-1 lni0 lni1 DF [ CF CIF sin0 H01 CI C ] D ln1 ln0 ln-1
|
|
1220
|
Fogra Ätztiefenschlüssel
|
Technical disc of plastic
140x1.5 mm
Front Scales: 1 ( 2 3 4 5 6 7 )
|
|
1221
|
Fokker F 28
|
Technical disc of plastic
130x1 mm (1968)
|
|
5300
|
Fontenaille Table de Conversion Density Gas and Liquids
|
Log/tech disc of cardboard
278x214x1 mm (1992)
Front Scales: See Picture
Back Scales: See Picture
|
|
3682
|
Fowler Long Scale Calculator
|
Generic disc of metal
68.5x11.5 mm
Front Scales: L 3 revolution B scale
Back Scales: C 6 revolution B scale
|
|
3060
|
Fowler Universal
|
Generic watch type of metal
86x10 mm
Front Scales: Conversion Yards to Metres C CI L 100-10 (in 3 circles) sin(6°-70°) sin(0°-5°) tan
|
|
1222
|
Fowlers Calculator
|
Generic watch type of metal/glass
68 mm
Front Scales: D C B A
Back Scales: L C A S
|
|
1223
|
Fowler's Jubilee Magnum Extra Long Scale
|
Generic disc of metal/glass
119.5x11 mm
Front Scales: 1 C CI L 2 3 4 5 6 7 8 9 10 11
|
|
1227
|
Foxboro Flow & Valve (Steam, Gas and Liquid)
|
Log/tech slide rule of plastic
327x46x5 mm (1967)
Front Scales: 1 2 3 [ 4 5 6 7 8 9 10 11 12 13 14 ] 15
Back Scales: 16 [ 17 18 19 20 21 22 23 ] 24 25 26 27
|
|
1229
|
Foxboro The Valve and Meter
|
Log/tech slide chart of plastic
153x50x3 mm (1963)
|
|
1228
|
Foxboro Valve calculations
|
Log/tech slide rule of plastic
152x50 mm
Front Scales: A [ B 1 C ] E # 2 #
Back Scales: [ B1 3 4 5 6 7 8 9 ]
|
|
1230
|
Frico Caloriewijzer
|
Medical disc of cardboard
120x0.3 mm
|
|
1235
|
Fuji 102 B
|
Generic slide rule of plastic
321x45x4 mm
Front Scales: K S A [ B CI C ] D T L
|
|
1236
|
Fuji 104 B
|
Generic slide rule of plastic
320x45x4 mm
Front Scales: T1 T2 K A [ B CI C ] D S ST L
|
|
1237
|
Fuji 106
|
Generic slide rule of plastic
320x45x3.8 mm
Front Scales: T ST DF [ CF CIF CI C ] D A S
|
|
1238
|
Fuji 112 WN Wolters Noordhoff
|
Generic slide rule of plastic
319x45x4 mm
Front Scales: L DF [ CF CIF CI C ] D A K
Back Scales: 25cm [ S ST T1 T2 ]
|
|
1250
|
Fuji 1250 S Duplex Log/Log
|
Generic slide rule of plastic, 335.5x49x5 mm
Front Scales: LL-1 LL-2 LL-3 A [ B L K C ] D LL3 LL2 LL1
Back Scales: T1 T2 DF [ CF CIF CI C ] D P S ST
|
|
1251
|
Fuji 129 01 Student Log
|
Generic slide rule of plastic
325x45x4 mm
Front Scales: L K A [ B CI C ] D S ST T
Back Scales: 25cm [ S LL1 LL2 LL3 ] 10inch
|
|
1240
|
Fuji 129 Student Log
|
Generic slide rule of plastic
314x43x4 mm
Front Scales: L K A [ B CI C ] D S ST T
Back Scales: 25cm [ S LL2 LL3 ] 10 inch
|
|
1243
|
Fuji 251 Rietz
|
Generic slide rule of plastic
290x40x4 mm
Front Scales: 25cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
3684
|
Fuji 42
|
Generic slide rule of plastic
150.5x27x4 mm
Front Scales: DF [ CF CI C ] D
Back Scales: [ S L T ]
|
|
3683
|
Fuji 51
|
Generic slide rule of plastic
150.5x27x4 mm
Front Scales: A [ B CI C ] D K
Back Scales: [ S L T ]
|
|
1245
|
Fuji 534 S
|
Generic slide rule of plastic
150x35x4 mm
Front Scales: 13cm // K A [ B CI C ] D L \\ 5inch
Back Scales: [ S ST T ]
|
|
1247
|
Fuji 535 S
|
Generic slide rule of plastic
14.9x34.5x4 mm
Front Scales: 13cm // A [ B CI C ] D K \\ 5inch
Back Scales: [ S L T ]
|
|
3438
|
Fuji 536 C
|
Generic slide rule of plastic
150x34x4 mm
Front Scales: 13cm // S T A [ B CI C ] D K P
Back Scales: [ L LL1 LL2 LL3 ]
|
|
1248
|
Fuji 553 P Duplex Log Log
|
Generic slide rule of plastic
175x38x4 mm
Front Scales: LL-1 LL-2 LL-3 A [ B L K C ] D LL3 LL2 LL1
Back Scales: T1 T2 DF [ CF CIF CI C ] D P S ST
|
|
1232
|
Fuji 88
|
Generic slide rule of plastic
225x30x4 mm
Front Scales: K DF [ CF CI C ] D A
Back Scales: [ S L T ]
|
|
3662
|
Fuji F 100
|
Generic slide rule of plastic
313.5x43x6.5 mm
Front Scales: DF [ CF CIF CI C ] D A
|
|
1233
|
Fuji FJ 102 WN Wolters Noordhoff Branded
|
Generic slide rule of plastic
313x43x5 mm
Front Scales: L DF [ CF CIF CI C ] D A K
Back Scales: 25cm [ S ST T1 T2 ]
|
|
3911
|
Fullerton ACU 400
|
Generic slide rule of plastic
315x40x3 mm
Front Scales: S K A [ B CI C ] D L T
|
|
1258
|
Gamma Budapest 2503
|
Generic slide rule of wood/plastic
295x38.8x11.4 mm
Front Scales: 27cm L // K A [ B CI C ] D P || sin tg
Back Scales: [ LL1 LL2 LL3 ]
|
|
5382
|
Gasunie Conversion rule for combustion component units
|
Conversion slide chart of cardboard
162x70x1 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
1261
|
Geluidsbelastingschijf
|
By Verkeersakademie, technical disc of plastic
135 mm
Front Scales: 1 2 ( 3 4 5 )
|
|
1262
|
Geluidsoverlast
|
Technical slide chart of plastic
210x77x1 mm
Front Scales: 1 - 10
|
|
5311
|
Gerling Benzin Rechner
|
Technical disc of cardboard
103x145x0.7 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
5345
|
Geschwindigkeitsmesser für Schleif- und Polierscheiben (Norton,, USA - Form 1367)
|
log/tech slide chart of plastic
146x91x0.7 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
3950
|
Geveke Werktuigbouw Perslucht - Energieverlies - Berekeningsschijf
|
By Slide Charts Britain Ltd, log/tech slide chart of cardboard
212x80x1 mm (1996)
|
|
1263
|
Gewichts- und Massberechnung von Bandstahlringen
|
Technical slide chart of plastic
210x68x2.5 mm
Front Scales: 20cm 7 scales scale 1:25 from 0-5
Back Scales: 15 stuks scales
|
|
1270
|
Gilson Midget
|
Generic disc of plastic
107x0.7 mm (1931, 1936)
Front Scales: x 1/x lg.x x3
Back Scales: C CI L A binary LL 1/64 drill V USS sin tg sin tg sin tg 1/64 dec.
|
|
3258
|
Gilson The Binary Slide Rule Type I
|
Disc of aluminium
203x mm (1931 1940)
Front Scales: C CI A K L 4 revolution Log Log, Binary, Fraction, drill size and mm conversion
Back Scales: Degrees, Sines, Tangents, Degrees, Sines, Tans., Deg'es, Sines, Tans, Fractions, Decimal equivalents
|
|
0111
|
Gilson The Binary Slide Rule Type II
|
Slide rule of aluminium
209 mm (1931 1940)
Front Scales: C CI A K L 4 revolution Log Log, Binary, Fraction, drill size and mm conversion
Back Scales: Degrees, Sines, Tangents, Degrees, Sines, Tans., Deg'es, Sines, Tans, Fractions, Decimal equivalents
|
|
1271
|
Goble Aircraft Specialities Model D
|
Aviation disc of plastic
105x2 mm (1946)
Front Scales: 1 ( 2 3 4 5 ) + 2 windows
|
|
1272
|
Goldwell Conbelcolor Farbfestiger (non-logarithmic)
|
Other disc of plastic
89x113x1.5 mm
|
|
1274
|
Grant Casing (non-logarithmic)
|
Technical slide chart of plastic
235x98x1.5 mm
|
|
1275
|
Grant Tubing (non-logarithmic)
|
Technical slide chart of plastic
235x98x1.5 mm
|
|
1276
|
Graphic Anemostat Air Duct Calculator
|
Log/tech slide chart of plastic
215x84x2 mm
Front Scales: 8 scales
Back Scales: 11 scales
|
|
1343
|
Graphic Calculator Cameron Flange
|
Technical slide chart of cardboard
255x102x2 mm
|
|
1345
|
Graphic Calculator Co Reed Hydraulic Calculator
|
Log/tech slide chart of plastic
252x105x2.5 mm
|
|
1286
|
Graphoplex
|
Log/tech slide rule of plastic
291x40x6.2 mm
Front Scales: 27cm // 1 [ 2 3 ] 4 5
|
|
1287
|
Graphoplex
|
Generic slide rule of plastic
292x43.4x4 mm
Front Scales: 25cm L B3 B2 [ b2 a b ] B S S&T T
|
|
1288
|
Graphoplex
|
Generic slide rule of plastic
294x38.7x8.2 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S S&T T ]
|
|
2728
|
Graphoplex
|
Log/tech slide rule of plastic
295x39.5x5.5 mm
Front Scales: 27cm // w R [ X Q ] H
|
|
1289
|
Graphoplex (615) Caltex
|
Generic slide rule of plastic
185x32x5 mm
Front Scales: 17cm // B3 B2 [ b2 a b ] B L #°F °C#
Well: °F to °C conversion
Back scale: [ °API D ]
|
|
1332
|
Graphoplex 1600
|
Generic slide rule of plastic
298x45.6x3.6 mm
Front Scales: 27cm // L T>45° A [ B K CI C ] D S ST T<45°
|
|
3680
|
Graphoplex 1612
|
Generic slide rule of plastic
151.5x33x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]
|
|
3677
|
Graphoplex 1612 Rietz KOH-I-NOOR
|
Generic slide rule of plastic
150x33x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]
|
|
1340
|
Graphoplex 1614 Log Log
|
Generic slide rule of plastic
297x49x4 mm
Front Scales: 27cm // LL2 LL3 L A [ B K CI C ] D S ST T<45°
|
|
1341
|
Graphoplex 1694 Techni - math
|
Generic slide rule of plastic
296x49x4 mm
Front Scales: 27cm // P K A DF [ CF L CI C ] D S SRT T
|
|
1294
|
Graphoplex 610 Rietz
|
Generic slide rule of plastic
295x30x4 mm
Front Scales: K A [ B CI C ] D L
|
|
1295
|
Graphoplex 612
|
Generic slide rule of plastic
150x32x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]
|
|
1301
|
Graphoplex 615
|
Generic slide rule of plastic
185x32x4 mm
Front Scales: 17cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]
|
|
1305
|
Graphoplex 620 d
|
Generic slide rule of plastic
292x40x6.5 mm
Front Scales: 27cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]
|
|
1303
|
Graphoplex 620 Rietz
|
Generic slide rule of plastic
290x40x6 mm
Front Scales: 27cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]
|
|
1309
|
Graphoplex 630 Géomètre Topographe 400g
|
Generic slide rule of plastic
294x45x5.5 mm
Front Scales: 27cm // L B3 B [ sinxcos cos2 S&T b ] B B2 1/B2
Back Scales: [ sin sin&tg tg b2 ]
|
|
1311
|
Graphoplex 640 Electric Log Log
|
Generic slide rule of plastic
291x46x6 mm
Front Scales: 27cm // L B3 B2 [ b2 a b ] B LL3 LL2 LL1
Back Scales: [ cos sin tg b ]
|
|
1320
|
Graphoplex 647
|
Generic slide rule of plastic
293x45.5x5.5 mm
Front Scales: 27cm // K P A [ B AI CI C ] D S ST T<45°
Back Scales: [ L LL1 LL2 LL3 ]
|
|
1321
|
Graphoplex 650 Electro
|
Electrical slide rule of plastic
153x44.8x4.8 mm
Front Scales: 13cm // L B3 cosø B2 [ b2 a b ] B cosø DYNAMO MOTEUR VOLT
Back Scales: [ S&T S T b ]
|
|
1323
|
Graphoplex 690 a Neperlog
|
Generic slide rule of plastic
336x48.5x5.5 mm
Front Scales: LL00 L T>45° A [ B T<45° SRT S C ] D P DI LL0
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1
|
|
1324
|
Graphoplex 691 a Neperlog Hyperbolic
|
Generic slide rule of plastic
338x48.7x4.2 mm
Front Scales: L P Ch A [ B T<45° ST S C ] D Th Sh2 Sh1
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1
|
|
1326
|
Graphoplex 692 b
|
Generic slide rule of plastic
185x44x3 mm
Front Scales: LL00 L T>45° A [ B T<45° SRT S C ] D P DI LL0
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1
|
|
5739
|
Graphoplex 694
|
Generic slide rule of plastic
330x39x4.4 mm
Front Scales: P T>45° A = B T<45° ST S C = D DI K
Back Scales: L LL3 DF = CF CIF CI C = D LL2 LL1
|
|
1327
|
Graphoplex 694 a Tecnilog
|
Generic slide rule of plastic
330x39x4.4 mm
Front Scales: P T>45° A [ B T<45° SRT S C ] D DI K
Back Scales: L LL3 DF [ CF CIF CI C ] D LL2 LL1
|
|
1329
|
Graphoplex 697
|
Electrical slide rule of plastic
337x48.3x4.2 mm
Front Scales: L 1 Dyn./M Volts A [ B Cap./Ind. CI C ] D f l DI
Back Scales: ST T S DF [ CF CIF K CI C ] D LL3 LL2 LL1
|
|
1331
|
Graphoplex 699 Décilog
|
Generic slide rule of plastic
332x39x4.2 mm
Front Scales: LL01 L A [ B T SRT S C ] D DI LL1
Back Scales: LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2
|
|
1281
|
Graphoplex Calculateur Roplex
|
Generic disc of plastic, 128x128x6 mm
Front Scales: ( n n ) ( n2 n2 ( 1/n)
Back Scales: n3 S L O T S&T
|
|
2762
|
Graphoplex Conversion (non-logarithmic)
|
Conversion no slide of plastic
280x40x9.5 mm
Front Scales: 25cm // B (US)L (I)LG AI A \\ 10inch
|
|
3287
|
Graphoplex Oilcompany rule
|
Oil industry slide rule of plastic
152x31.5x5 mm
Front Scales: 5inch // Gross loss% CO2% [ °F °C C ] D Net loss%
Back Scales: [ Excess air% CO2% Oxy.% ]
|
|
1308
|
Graphoplex S 621 Rietz
|
Generic slide rule of plastic
295x46x5 mm
Front Scales: 27cm // P SRT A [ B T<45° S CI C ] D K L
|
|
1316
|
Graphoplex S 641 Log Log
|
Generic slide rule of plastic
295x56.4x5.5 mm
Front Scales: 27cm // L K P SRT A [ B T<45° S CI C ] D LL3 LL2 LL1
|
|
3075
|
Graphoplex Statos Béton Armé
|
Concrete slide rule of plastic
290x46 mm
Front Scales: 27cm // L B3 B2 [ b2 a b ] B 1 2 3 4 5 6
Back Scales: [ cos sin tg b ]
|
|
1284
|
Graphoplex Statos Stahlbeton Von Roll
|
Concrete slide rule of plastic
153x44x4.8 mm
Front Scales: 13cm // L cos B3 B2 [ b2 a b ] B 1 2 3
Back Scales: [ S&T S T b ]
|
|
3530
|
Graphoplex Statos Stahlbeton Von Roll - S
|
Concrete slide rule of plastic
153x44x4.8 mm
Front Scales: 13cm // L cos B3 B2 [ b2 a b ] B 1 2 3
Back Scales: [ S&T S T b ]
|
|
2790
|
Graphoplex Thermocoax
|
Technical slide rule of plastic
293x46x6.5 mm
Front Scales: 27cm // AK FK AB [ mv mv ] AB pre prg rdrn
Back Scales: [ °C °F ] 10inch
|
|
1347
|
Gravet Lenoir
|
Generic slide rule of all wood
260x24.2x7.9 mm
Front Scales: A [ B B ] D || 26cm
Well: #26-52cm#
Back Scales: [ 1 2 3 ]
|
|
3852
|
Gravet Lenoir
|
Generic slide rule of all wood
Front Scales: A [ B B ] D || 26cm
Well: #26-52cm#
Back Scales: [ 1 2 3 ]
|
|
1348
|
Green B - 29 Flight Engineer's Computer
|
Aviation slide rule of metal/paper
395x100x5 mm (1945)
Front Scales: nomogrammen
Back Scales: nomogrammen
|
|
3506
|
Green Force and Bomb Load Computer
|
Military rule no cursor no slide of metal/celluloid
395x100x2 mm
|
|
1349
|
Greenfield Tap Drill Chart (non-logarithmic)
|
Technical table of cardboard/plastic
139x86x0.4 mm
|
|
5342
|
Greschner Comfort Sinusverteiler
|
Technical slide chart of plastic
225x98x1.3 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
5266
|
Greschner Geluiddempers
|
Technical slide chart of plastic
198x94x1.5 mm (1989)
Front Scales: See Picture
Back Scales: See Picture
|
|
1350
|
Griffon Fuel Consumption Calculator for Griffon 57 Engine
|
Technical disc of plastic
140x140x3 mm
Front Scales: 1 2 ( 3 4 )
|
|
1351
|
Grizzle Gas Pipe Line
|
Technical slide rule of wood
305x28 mm (1945)
Front Scales: B A [ A1 C Q ] P and Sp.Gr . And E and D F and H
Back Scales: [ BI CI R G DL [
|
|
5061
|
Grizzle, B.F., Water Line Capacity Slide rule
|
Log/tech slide rule Scale arrangement 1944
Front Scale: Pipe ID [Length of Line, Cubic feet, GPH, GPM ] Head Loss, Pressure Loss
|
|
3575
|
Guedon Camden N.J. (Made in France)
|
Generic slide rule of celluloid
146.5x28x3 mm
Front Scales: A [ B C ] D
Back Scales: Conversion table
|
|
5782
|
Gunter (only front side)
|
Gunter rule of all wood
|
|
1353
|
Gunter's scale
|
Generic Gunter rule of all wood
608x44x4 mm
Front Scales: Many scales
Back Scales: Many scales
|
|
5257
|
Günther & Co. Drills (non-logarithmic)
|
Technical slide chart of plastic/cardboard
170x95x1.5 mm
Front Scales: See Picture
Back Scales: See Picture
|
|
2777
|
Gypsum Gypsum Cement & Plaster Calculator
|
Log/tech slide chart of cardboard
231x102x2.5 mm
Front Scales: 8 scales
Back Scales: 2 scales
|
