Parts for Pickett Slide Rules

Here is a table of Pickett slide rule part numbers we can supply. Be careful; models with and without the "N" prefix take different parts. However, the suffix "T" ("true color" white) or "ES" ("eye saver" yellow) merely denotes the body color of the slide rule; it has nothing to do with the physical dimensions of the rule. Ignore the T/ES suffix when determining part numbers.

Rule thickness	1/10-inch thick				1/10-inch thick				5/32-inch thick
Rule width (inches)	2 inches	1-1/2 inches	1-1/4 inches	1 inch
Model number	N2 N3 N4	N500 N510 N800 N803	N901 N902 N903 N904 N1010 N1011	N200 N300 N400 N600 N1006 N62	2 3 4 6	500 510 800 803	901 902 903 1010	200 300 400 500 600 1006	2 3 4 6	500 510 800	901 902 903 1000 1010
Complete Cursor $40	NA	2	3	NA	5	NA	NA	NA	9	NA	NA
Cursor Spring $5	NA	NA	NA	NA	NA	NA	NA	NA	13	13	13
Top Cursor Bar $5	14	15	16	17	18	19	20	21	22	23	24
Bottom Cursor Bar $5	25	26	27	28	29	30	31	32	33	34	35
Window Only $16	NA	37	38	39	NA	NA	NA	NA	NA	45	46
Cursor Screw $3	47	47	47	47	48	48	48	48	49	49	49
End Plate Screw & Nut (2 items) $12	NA	NA	NA	NA	NA	NA	NA	53	NA	NA	NA
Used Leather Case $12	55	56	NA	NA	55	56	NA	NA	55	56	NA
Pickett Clip-On Magnifier $50			900M

Parts for Relay and Ricoh Slide Rules

The Relay Industrial Company (also know as "San Ai Keiki") was the second largest manufacturer of bamboo slide rules in Japan after World War II. The company was purchased by, and the name changed to, Ricoh in the 1960s. Relay/Ricoh bamboo slide rules were marketed under various brand names including Alvin, Compass, Dietzgen, Engineer's, Jason, Lafayette, Lutz, Micronta, Olson, Pickett, Relay, Ricoh, San Ai, Sans & Streiffe, SIC, Skyline, Wallace and Wallace and others. They frequently did not carry any Relay or Ricoh identification and can be difficult to differentiate from Hemmi-made bamboo rules. There are two sure ways to tell a Relay/Ricoh bamboo rule from a Hemmi rule: 1. R/R bamboo duplex rules always have plastic cursor lenses whereas Hemmi bamboo duplex rules always have glass lenses. (This doesn't help identify the manufacturer of closed-body rules; both manufacturers used both glass and plastic on their closed-body rules.) 2. Hemmi rules always carry the Hemmi brand name somewhere--sometimes just stamped into the cursor. If it's not marked "Hemmi" somewhere, it's R/R.

Quantities are limited (sometimes only one). Email us if you need something not on this list or if you're not sure what you need.

Fits	Item	Part No.	Price
Closed body R/R rules with 17mm face width including model 403 and others.	Complete Cursor, flat Pic	RR1472	$25 New
Closed body R/R rules with 19mm face width.	Complete cursor, flat	RR1464	$20 New
Closed body R/R rules with 19mm face width.	Cursor with detachable magnifier Pic	RR1464M	$35 New
Closed body R/R rules with 15/16-inch (23.8mm) face width.	Complete cursor, flat	RR1473	$25 New
Closed body R/R rules with 28 mm face width.	Complete cursor, flat Pic	RR1471	$25 New
Closed body R/R rules with 34 mm face width.	Complete cursor, flat	RR1471W	$35 New
Old Style Duplex Cursors for 1-3/4 and 1-5/8-inch rules.	Cursor Screw Post, two-piece Pic	RR1S	$12 Used

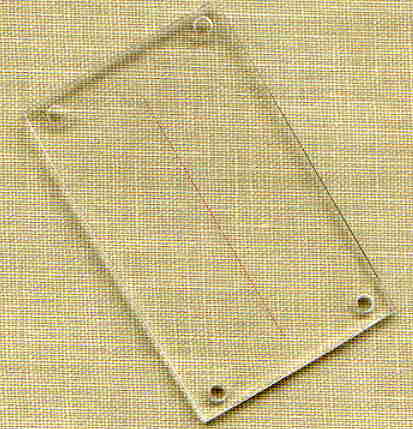

	Lens, 1-5/8 inches wide Pic	RR5	$10 Replacement

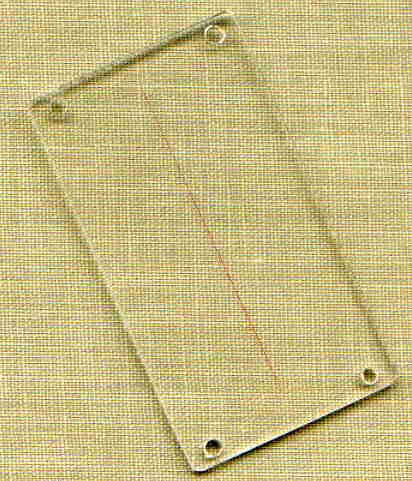

	Lens , 1-3/4 inches wide Pic	RR7	$10 Replacement
	Top cursor bar with spring Pic	RR1B	$5 Used
	Bottom cursor bar, no spring Pic	RR1B	$4 Used
New Style Cursors for Duplex Rules.	See specific rule width, below.
15/16-inch (23.8 mm) wide duplex rules with new style cursors.	Complete Cursor Pic	RR20	$35 New
	Lens, Factory Original	RR20L	$16 New
	Top Bar with Spring	RR2B	$8 New
	Bottom Bar, no Spring	RR2B	$5 New
	Cursor Screw, Chrome	RR2S	$3 New
1-3/8-inch (35 mm) wide duplex rules with new style cursors.	Complete Cursor Pic	RR25	$35 New
	Lens, Factory Original	RR25L	$16 New
	Top Bar with Spring	RR2B	$8 New
	Bottom Bar, no Spring	RR2B	$5 New
	Cursor Screw, Chrome	RR2S	$3 New
1-5/8-inch (40 mm) wide duplex rules with new style cursors including, but not limited to R/R 100, 150, 152, 153, 154, 156, 252, DT-1015; Alvin 1150; Compass 1321; Dietzgen 1737; Jason 802; Lafayette 99-7031, -70310, -7128, -71284, F-341; Lietz 3054L; Lutz 102S, 252; Micronta 150; SIC 1520, 1530, 1530A.	Complete Cursor Pic	RR30	$ 40 New
	Lens, Replacement Pic	RR30L	$10 Replacement
	Top Bar with Spring	RR3B	NA
	Bottom Bar, no Spring	RR3B	NA
	Cursor Screw, Chrome	RR3S	$3 New
1-3/4-inch (47-mm) wide duplex rules with new style cursors including, but not limited to R/R 151, 157, 158, 159; Alvin 1151, 1157; Compass 1325; Dietzgen B-1734; Jason 803; Lafayette 99-7055, -70559, -7102, F-428, F-686; Lutz 151, 151P; Micronta 157; Omega DTDS-1065; Pickett B1; SIC 1510, 1570, 1580.	Complete Cursor Pic	RR35	NA
	Lens, used Pic	RR35L	NA
	Top Bar with Spring	RR3B	NA
	Bottom Bar, no Spring	RR3B	$5 New
	Cursor Screw, Chrome	RR3S	$3 New

Note "Used" items are excellent condition with minor signs of wear but no damage or graffiti. "New" items are unsold distributor's stock from the 1970s. Screws described as "Replacement" are new stainless standard hardware items similar, but not identical, to factory original. Lenses described as "Replacement" are newly made from acrylic sheet stock; they are almost indistinguishable from original factoryparts but may require slight adjustment of the screw holes.

Parts for Nestler Slide Rules

Parts for Other Slide Rule Brands

Fuller Bakelite handle with mounting screw. Hollow so that calculator can be mounted for hands-free operation. PICTURE	Very fine. No damage, no graffiti.	$70
Fuller Upper brass cursor (13 inches long) with all necessary mounting hardware . (Five mounting screws and one brass receiving bar.) Marked with serial number 9017 and date 1947. PICTURE	Fine. Never bent, surface is smooth and shiny. Not for wooden-body Fullers.	$100

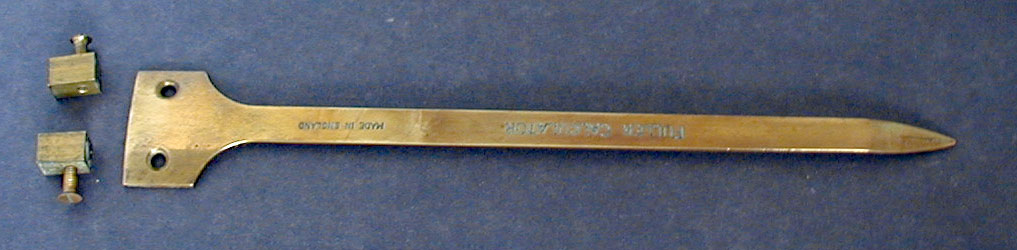

Fuller Lower brass cursor (6.5 inches long) with all necessary mounting hardware. (Two mounting screws and two brass receiving nuts.) Marked "FULLER CALCULATOR Made in England." PICTURE	Fine. Never bent, surface is smooth and shiny. Not for wooden-body Fullers.	$70
